CDR Series Inline Duct Fan
Description:
CDR series external transmission circular duct fan is a new type of fan developed by our company in combination with advanced technology at home and abroad. It has the advantages of small volume, high efficiency, large air volume, low vibration, low noise, safety, power saving, durability, beautiful appearance, convenient installation and commissioning, etc.
Key words:
Blower
Category:
Inline duct fans
Hot selling fans
CDR Series Inline Duct Fan
Overview
CDR series external transmission circular duct fan is a new type of fan developed by our company in combination with advanced technology at home and abroad. It has the advantages of small volume, high efficiency, large air volume, low vibration, low noise, safety, power saving, durability, beautiful appearance, convenient installation and commissioning, etc.
CDR series external rotor circular duct fan has moisture resistance and can be used normally in humid or humid environment. When used in pipeline, the protection grade is IP44. The gas conveyed by such fans shall not have viscous and corrosive substances, and shall not be used to convey grinding powder, soot and other inflammables and explosives.
CDR series external transmission circular duct fan is suitable for air supply, exhaust, return and filtration in hotels, high-end clubs, supermarkets, storage rooms, toilets, family kitchens and emotional places.
Application
Use environment is - 40 ℃ to 60 ℃;
Relative humidity not more than 90%
The altitude shall not exceed 1000 meters.
Size from 100mm to 315mm

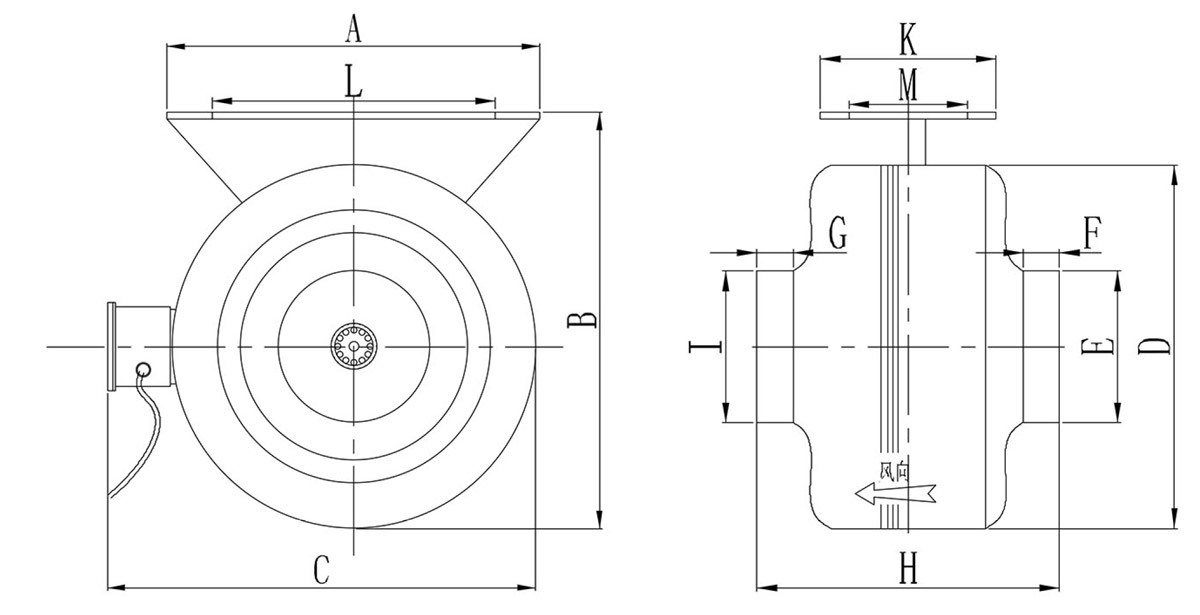

| Model | A | B | C | D | E | F | G | H | I | K | ]. | \l |
| 100 | 240 | 260 | 282 | 240 | 95 | 21 | 21 | 198 | 95 | 155 | 203 | 130 |
| 125 | 240 | 270 | 288 | 240 | 120 | 21 | 21 | 200 | 120 | 155 | 203 | 130 |
| 150 | 240 | 360 | 380 | 325 | 145 | 25 | 25 | 228 | 145 | 155 | 203 | 130 |
| 160 | 240 | 352 | 380 | 327 | 157 | 25 | 25 | 237 | 157 | 155 | 203 | 130 |
| 200 | 240 | 358 | 380 | 330 | 15a | 25 | 25 | 215 | 155 | 155 | 203 | 130 |
| 250 | 240 | 360 | 380 | 328 | 155 | 25 | 25 | 195 | 245 | 155 | 203 | 130 |
| 315 | 240 | 430 | 446 | 395 | 182 | 25 | 30 | 238 | 313 | 155 | 203 | 130 |
Specification
| Model | Rated voltage (V) |
Frequency (Hz) |
Input power (W) |
Highest speed (r/min) |
Volume (m3/h) |
Pressure (Pa) |
Noise level db(A) |
| CDR2E-100 | 220 | 50 | 75 | 2650 | 250 | 350 | 47 |
| CDR2E-125 | 220 | 50 | 80 | 2650 | 275 | 390 | 47 |
| CDR2E-150 | 220 | 50 | 140 | 2650 | 370 | 400 | 52 |
| CDR2E-160 | 220 | 50 | 145 | 2650 | 590 | 420 | 52 |
| CDR2E-200 | 220 | 50 | 180 | 2550 | 800 | 550 | 53 |
| CDR2E-250 | 220 | 50 | 190 | 2550 | 850 | 570 | 55 |
| CDR2E-315 | 220 | 50 | 270 | 2650 | 1200 | 830 | 60 |
