Hot Selling Factory Direct-sale 220V centrifugal cooling air blower fans

Description:

DKT series external rotor centrifugal air conditioning fan is a sirocco fan with the advantages of large volume, low noise, compact structure,sturdy and durable, beautiful appearance, and easy installation and commission.

Key words:

Blower

Category:

DKT air conditioning fans

Hot selling fans

+86-15868686700

Messages

Return to list

Hot Selling Factory Direct-sale 220V centrifugal cooling air blower fans

Overview

Applications

DKT type air-conditioning fan is mainly used for various air-conditioning units, air curtains, cooling and heating fans and other supporting products. It can also be used for ventilation of industrial and mining enterprises and civil buildings.

Structure

DKT fan is mainly composed of impeller, volute, motor and other main components. The impeller is formed by riveting the forward curved blade with the wheel cover and middle disc. All parts are made of stamping die, with accurate and reliable size and profile, good aerodynamic performance, stable dynamic and static correction, stable dynamic rotation and low noise. The volute adopts the external rotor type, which is built in the volute and directly connected with the impeller, with compact structure, stable rotation and low noise.

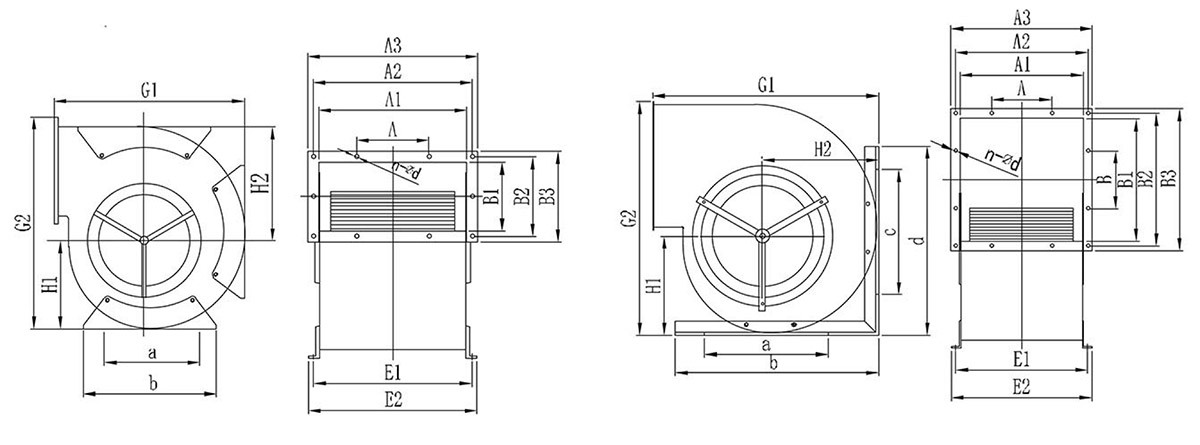

Size from 200mm to 560mm

Size	Model	A	Al	A2	A3	B	B1	B2	B3	E1	E2	G1	G2	H1	H2	a	b	C	d	n-Ød
2.0	11-45	90	235	265	285	/	125	155	175	260	283	320	350	148	183	200	240	/		10-07
2.25	10-63	100	275	305	325	/	137	166	188	295	325	350	390	163	203	200	240	/		10-07
2.5	12-45	113	305	335	355	/	153	181	202	330	352	390	430	179	228	230	270	/		10-07
	8-34	109	290	320	340	/	230	260	280	317	338	370	430	180	232	230	270	/		10-07
	12-58	115	323	353	373	/	233	262	282	350	370	374	430	180	232	230	270	/		10-07
2.8	10-60 z9-67	129	350	380	400	110	300	330	350	390	410	462	505	207	267	300	360	/		12-07
3.0	9-57 /9-56	122	333	362	382	/	225	255	275	370	430	513	560	233	301	300	360	/		10-07
3.0	16-47	134	103	432	453	/	225	255	275	140	500	513	560	233	301	300	360	/		10-07
3.5	10-48 /11-48	111	305	337	365	130	355	390	420	335	360	725	775	273	339	455	600	455	600	12-09
4.0	12-45	142	395	426	455	147	400	430	460	435	460	725	775	320	375	400	600	400	600	12-09
4.0	12-42	151	455	485	515	147	400	430	460	495	520	725	775	320	375	400	600	400	600	12-09
4.5	13-42	160	440	470	500	130	360	390	420	480	520	750	850	340	415	400	600	400	600	12-09
	15-42	170	530	560	590	130	360	390	420	580	620	750	850	340	415	400	600	400	600	12-09
	11-68	205	615	645	675	130	360	390	420	660	695	750	850	340	415	400	680	400	815	12-09
5.0	13-52	220	645	675	705	140	400	430	460	690	715	795	925	380	435	530	730	530	890	16-09
5.6	10-58	143	685	715	745	240	453	483	513	730	755	865	950	410	468	530	800	530	955	18-09

Specification

Model	Model	Rated voltage (V)	Frequency (Hz)	Input power (KW)	Highest speed (r/min)	Volume (m3/h)	Pressure (Pa)	Noise level db(A)
DKT4E-200	11-45	220	50	0.25	1360	900-1500	315-295	64
DKT4D-200	11-45	380	50	0.25	1360	900-1500	315-295	64
DKT4E-225	10-63	220	50	0.45	1360	2300-2900	325-300	66
DKT4D-225	10-63	380	50	0.45	1360	2300-2900	325-300	66
DKT4E-250S	8-34	220	50	0.75	1360	1800-2600	500-455	64
DKT4E-250M	12-45	220	50	0.75	1360	2100-3000	515-475	64
DKT4D-250M	12-45	380	50	0.75	1360	2100-3000	515-475	64
DKT4D-250L	12-58	380	50	0.85	1360	2500-4000	400-270	67
DKT4E-280	10-60	220	50	1.10	1360	2500-4500	400-380	69
DKT4D-280	10-60	380	50	1.10	1360	2600-4600	420-400	69
DKT6D-280	9-67	380	50	0.55	920	2100-3600	270-190	67
DKT4E-300M	9-56	220	50	1.50	1350	3600-5300	600-480	72
DKT4D-300M	9-56	380	50	1.80	1360	3800-5500	620-500	72
DKT4D-300L	9-57	380	50	2.20	1360	4300-6500	720-700	72
DKT6D-300S	16-47	380	50	1.10	920	3100-5100	425-405	67
DKT4D-350	11-48	380	50	3.00	1360	5300-7500	960-880	75
DKT6D-350	10-48	380	50	1.50	920	3100-6100	355-330	68
DKT6D-400S	12-42	380	50	2.20	920	4050-7050	612-600	69
DKT6D-400M	12-45	380	50	3.00	920	5100-9100	610-590	72
DKT6D-450S	13-42	380	50	4.00	920	5600-11000	800-750	75
DKT6D-450M	15-42	380	50	5.50	920	7500-13000	850-800	77
DKT6D-450L	11-68	380	50	7.50	920	13000-19000	750-700	75
DKT6D-500	13-52	380	50	9.00	920	20000-28000	800-700	80
DKT6D-560	10-58	380	50	11.00	920	26000-30000	1100-850	88
